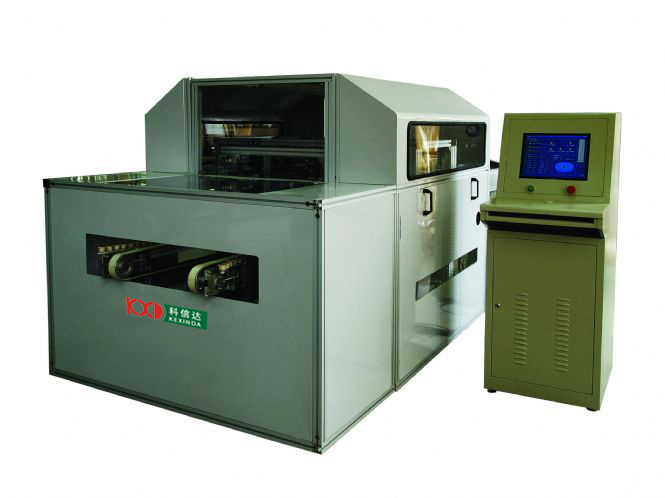

瓷磚尺寸自動檢測線
用于自動檢測瓷磚尺寸
Used for automatic detecting dimension of ceramic tiles.
本設備采用現在工業控制領域流行的機器視覺技術，實現對瓷磚尺寸的零損傷、全在線、全自動高速檢測。
Introducing the most popular machine vision technology of the current industry control, the equipment performs an automatic zero-destructive online high-speed detection for ceramic tiles dimension.
功能
◆ 檢測瓷磚四邊邊長
◆ 檢測瓷磚四邊邊直度
◆ 檢測瓷磚磚體對角線
Functions
◆ Detect the side length of ceramic tiles body.
◆ Detect the side straightness of ceramic tiles body.
◆ Detect the diagonal of ceramic tiles body.
性能特點
◆ 適用瓷磚范圍廣，適用對象：拋光磚、仿古磚、釉面磚
◆ 測量不受顏色、表面紋理、瓷磚質地限制
◆ 測量結果準確、可靠，誤差小
◆ 可實現高速度、非接觸式100%在線測量
◆ 友好的人機交互界面，使用方便直觀，操作簡單
◆ 設有產品數據庫，具有歷史數據的統計分析功能，便于質量監控及管理
◆ 客戶可自行設定瓷磚等級規格參數，便于質量控制
◆ 設備智能化，可自測故障，方便客戶排錯與恢復生產
◆ 設備故障修復簡單
◆ 氣動打標，自動標記不合格瓷磚，也可以根據客戶需求特殊定制標定方式
◆ 可為客戶量身訂造后續的分選設備，實現瓷磚檢測與分級一體化
Characteristics
◆ Extensive range for suitable ceramic tiles, applicable targets: polishing tiles, archaized tiles and glazed tiles.
◆ The colour, surface texture, and material quality of the tile detection is not limited.
◆ The dectect result, accurate, reliable, less tolerance.
◆ High speed, 100% noncontact online detect .
◆ Human-machine interface setting, high automation, simple operation.
◆ Establish data base with statistical analysis function on historical records, facilitating quality control and management.
◆ Detail of the grade specification could be modified flexibly by user, facilitating its quality control.
◆ Intelligent, provide the failure self-test, assist the client to debug and resume production.
◆ Simple troubleshooting.
◆ Pneumatically laser engraved, automatic badge unqualified ceramic tiles, customize standardization according to the customer’s requirement.
◆ Customize the successor separate equipment for users, integrate the detection and classification for the tile.
技術參數
◆ 檢測瓷磚規格：400mm×400mm、500mm×500mm、600mm×600mm、800mm×800mm等四種（如客戶有特定尺寸需求，可另行訂制）；
◆ 測量精確度：四邊邊長為±0.1mm，對角線為±0.15mm，邊直度為±0.4mm；
◆ 測量速度：以600×600mm瓷磚計，在線連續測量速度可達20~35塊/分鐘；
◆ 誤檢率：≤3%；
◆ 工作環境溫度：≤45℃；
◆ 環境濕度：20%～80%，攝像機正常工作。
Data
◆ Available tiles specification: 400mm×400mm、500mm×500mm、600mm×600mm and 800mm×800mm (if there are special requirements to the tile size, a separate customization is possible.)
◆ Detecting precision: length of four sides is ±0.1mm, diagonal tolerance is ±0.15mm and the straight of sides is ±0.4mm.
◆ Detecting speed: for the 600mm×600mm quadrel, continuously detecting online could achieve 20~35pics/min.
◆ Error examination rate: ≤3%.
◆ Working temperature: ≤45℃.
◆ Ambient humidity: 20%～80%, camera working well.
*本設備除可用在瓷磚尺寸自動檢測外，還適用于其他行業，可根據客戶的具體需求進行專業定制。
*Besides ceramic tiles dimension automatic detecting, the equipment could also be used for other business, which could be made according to the customers’ special requirement.
