微小型地面?zhèn)刹鞕C(jī)器人
微小型地面?zhèn)刹鞕C(jī)器人利用自身體積小、隱蔽性好的特點在反恐偵察、長期潛伏中具有重要作用。在偵察探測過程中，操作人員可以將機器人投向待偵察地域，通過遙控的方式調整機器人的位置及姿態，機器人通過無線視頻將現場情況發送到遠程操作端，達到遠程偵察及長期潛伏的目的。
To use its small size, good features hidden in anti-terrorism surveillance,micro ground reconnaissance robot take an important role in the long-term hiding.In the reconnaissance exploration process, the operator can send the robot to the region to be detected.The operator can adjust the robot's position and posture by remote control. Robot send the situation on the groud to remote operation end via wireless video, to achieve long-range reconnaissance and long-term hiding purposes.
一、產品特點
（1）、運動效率高、能量損耗小
They has the advantages of high movement efficiency, low energy loss.
（2）、目標小不易被發現、遠程遙控機動靈活、便于攜帶操控
Small size hard to be detected, remote control flexible and easy to be carried and operated
（3）、BALL-130是可移動偵察裝備，可以防震，抵抗各種不利環境因素
BALL-130 is a portable surveillance equipment,shockproof,resistance to adverse environmental factors.
（4）、BALL-130可以滾動移動以調整自身偵察位置，使自身存在于更加隱蔽的環境中 BALL-130 can be moved to adjust the scroll position of its own reconnaissance, so that self-exists in the more subtle environment
（5）、BALL-130可以零半徑自轉，實現360度環境偵察
BALL-130 can do a zero radius of rotation, to achieve 360-degree environment reconnaissance
（6）、獨特的遠距離監視設備，使用可靠It is a unique remote monitoring equipment, reliable
（7）、手持式遠程控制器，操作簡便，可遠程實時監測機器人工作狀態信息及圖像信息
Hand-held remote controller, easy to operate, could do the work of remote real-time monitoring of robot status information and image information.
二、主要參數The main parameters:
（1）、直徑：130毫米；Diameter: 130 mm;
（2）、自重：1.5千克；Weight: 1.5 kg;
（3）、速度：移動速度0.1米/秒；Speed: speed 0.1 m / s;
（4）、續航時間：30分鐘；Endurance time: 30 minutes;
（5）、潛伏時間：24小時；Incubation time: 24 hours;
（6）、無線傳輸距離：75米；Wireless transmission distance: 75 meters;
三、功能 Function
（1）、遠程反恐偵察、長期潛伏；Remote counter-terrorist and long-term hiding
（2）、適合應用于危險環境的探測、狹小復雜環境和管道內部等的監視、士兵作戰遠程偵察等方面；They are very suitable for hazardous environment detection,and reconnaissance in narrow channels within the complex environment and internal pipeline,and soldiers in combat long-range reconnaissance, etc.

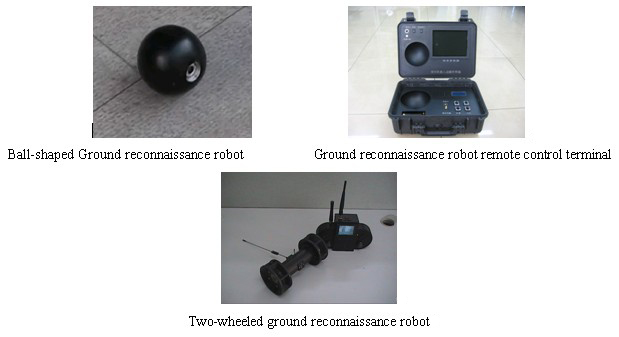

四、類別及樣機照片Prototype photo and description:

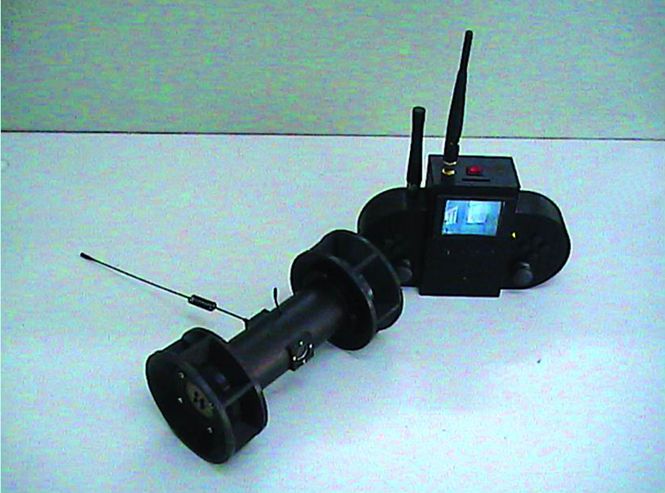

目前已研制球型、橢球型、雙輪三種地面?zhèn)刹鞕C(jī)器人Now we have developed spherical, ellipsoid, two-wheeled three kinds of ground reconnaissance robot
